Hog Heaven® Modular Tiles give you the flexibility to create a custom anti-fatigue matting system that perfectly fits your workspace. Whether you're outfitting a single workstation or covering a larger area with corners and edges, these modular tiles connect easily to form any configuration — with no compromise on comfort or durability.

Each tile features a high-density, closed-cell nitrile/PVC-blended cushion bonded to a durable nitrile rubber surface. This combination reduces fatigue, absorbs impact, and resists wear in the toughest industrial conditions. Certified high-traction by the National Floor Safety Institute (NFSI), these mats are also safe and reliable in environments with oil, grease, or chemicals.

The Hog Heaven Modular Tile system includes center, side, and corner tiles, allowing you to build flooring solutions that match your layout exactly — while sloped safety edges help reduce trip hazards.

Key Features:

Modular Design – Link tiles together to create nearly any size or shape you need

Superior Comfort – Anti-fatigue cushion reduces strain on legs, knees, and lower back

High-Traction Safety – Certified by the NFSI; beveled edges won’t crack or curl

Industrial Strength – Resistant to grease, oil, and chemicals; safe for welding areas

Electrically Conductive – ESD-safe surface for static-sensitive environments

Easy to Cut & Configure – Custom inside corners can be cut using a straight edge and linoleum knife

Recommended For:

Manufacturing plants

Machine shops

Assembly lines

Distribution centers

Industrial workstations with irregular layouts

Areas where grease, oil, or chemicals are present

Available Tile Sizes:

18" Series:

Center Tile: 18" x 18"

Side Tile: 18" x 21.75"

Corner Tile: 21.75" x 21.75"

36" Series:

Center Tile: 36" x 36"

Side Tile: 36" x 39.75"

Corner Tile: 39.75" x 39.75"

Please note: Sizes are approximate and may vary by 3–5% due to rubber’s natural expansion and contraction.

Construction Details:

Surface Material: Durable nitrile rubber

Cushion Material: Closed-cell nitrile/PVC-blended foam

Foam Density: 7.0 – 9.0 lbs/ft³

Overall Thickness: 3/4 inch (0.75")

Performance & Testing:

Certified high-traction by the National Floor Safety Institute (NFSI)

ESD Rating: Electrically conductive

Passes BS 4790 and CPSC FF 1-70 flammability standards

Compression Deflection:

42.3% at 20 psi

56.8% at 40 psi

ASTM C1028-96 Coefficient of Friction:

Dry: 0.74

Wet: 0.77

Cleaning Instructions:

Scrub with a deck brush using neutral pH detergent (as needed)

Rinse with a hose or pressure washer

Hang or lay flat to dry completely before reuse

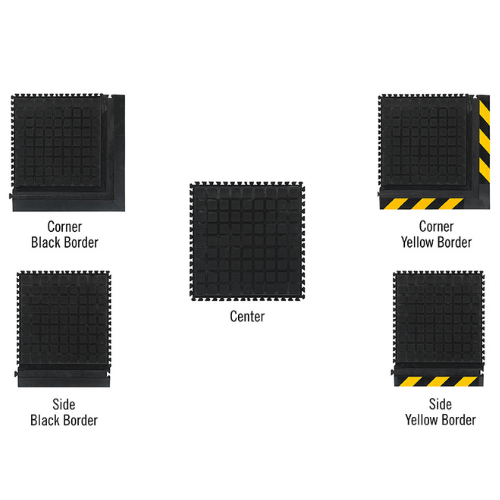

Tile System Guide:

Center Tiles: No borders – used for middle sections

Side Tiles: One bordered edge – used along straight sides

Corner Tiles: Two bordered edges – used for outside corners

How to Cut Inside Corners:

Assemble the tiles, overlapping the two that will meet at the inside corner

Lay a metal straight edge diagonally at a 45° angle across the overlap

Lift the top edge slightly to preview the cut and ensure the desired fit

With cut-resistant gloves, use a linoleum knife (not a utility knife) to make a clean cut through both tiles

Remove excess pieces and place the tiles together. For a more permanent hold, apply a few drops of super glue to the edge
