Description

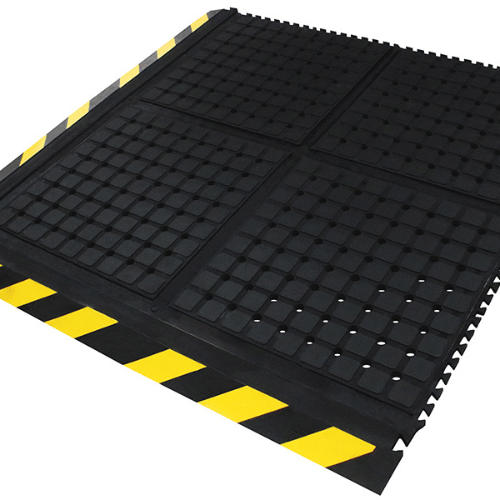

Hog Heaven® Drainable Modular Tiles offer an advanced modular matting system designed for wet industrial environments where comfort, safety, and durability are essential. Whether you're covering a small workstation or building out a large production floor, these interlocking tiles can be configured to meet your space requirements while providing outstanding anti-fatigue support.
Made from high-density closed-cell nitrile rubber, each tile resists grease, oil, and chemicals—making it ideal for heavy-duty industrial use. Integrated drainage holes allow liquids to pass through, keeping standing surfaces dry and reducing the risk of slips. The beveled edges won't crack or curl, ensuring a safe and seamless transition between the mat and the surrounding floor.
These 3/4" thick tiles are available in multiple sizes and styles—center, side, and corner tiles—making it easy to configure a custom layout with black or OSHA-approved yellow safety borders.
Features and Specifications
Features
- Modular Customization – Combine center, side, and corner tiles to create a layout that fits your space
- Exceptional Comfort – Closed-cell nitrile rubber reduces fatigue from standing
- Safe for Wet Environments – Drainage holes prevent puddling; beveled edges reduce trip hazards
- Industrial-Strength Durability – Withstands oil, grease, chemicals, and welding areas
- Certified Traction – NFSI certified for high traction; stays securely in place
- Welding Safe & Conductive – Suitable for use in areas with electrical sensitivity and welding equipment
Specifications
Tile Sizes and Components:
18" Tiles:
- Center Tile: 18" x 18"
- Side Tile: 18" x 21.75"
- Corner Tile: 21.75" x 21.75"
36" Tiles:
- Center Tile: 36" x 36"
- Side Tile: 36" x 39.75"
- Corner Tile: 39.75" x 39.75"
Note: Sizes are approximate due to rubber’s natural expansion and contraction. Tolerable manufacturing variance: 3–5%.
Construction:
- Material: Closed-cell nitrile rubber
- Overall Thickness: ¾ inch (0.75")
Standards & Testing:
- Passes BS-4790 Flammability (Metal Nut Method)
- ESD Rating: Electrically conductive
- Welding Safe: Yes
- Certified high-traction by the National Floor Safety Institute (NFSI)
Cleaning Instructions
- Scrub with a deck brush using neutral pH detergent as needed
- Rinse with a hose or pressure washer
- Hang to dry completely before returning to service
Ideal Aplications

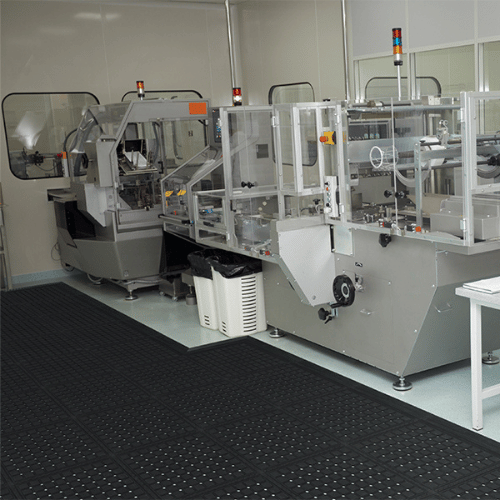

- Manufacturing and assembly areas
- Auto shops and machine shops
- Distribution centers
- Wet industrial zones or areas with chemical exposure
Instalation

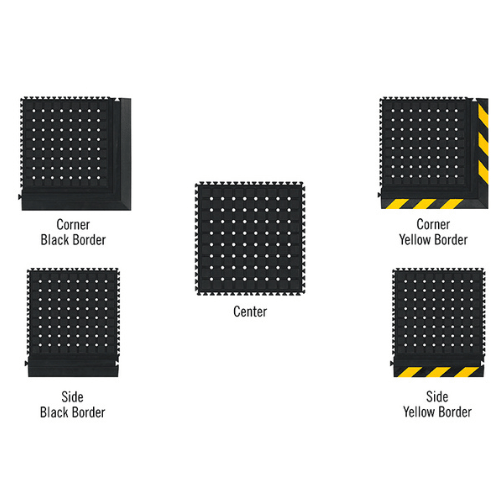

The modular tile system includes:
- Corner tiles with borders on two adjacent sides
- Side tiles with one bordered side
- Center tiles with no borders
To cut inside corners:
Use cut-resistant gloves, a linoleum knife, and a metal straight edge
Place tiles in desired layout and mark the 45° cut
Cut through both tiles in one motion with a linoleum knife (not a utility knife)
Remove excess and, if desired, glue cut corners together with a few drops of super glue
