About
Description
Hog Heaven® Modular Tiles give you the flexibility to create a custom anti-fatigue matting system that perfectly fits your workspace. Whether you're outfitting a single workstation or covering a larger area with corners and edges, these modular tiles connect easily to form any configuration — with no compromise on comfort or durability.
Each tile features a high-density, closed-cell nitrile/PVC-blended cushion bonded to a durable nitrile rubber surface. This combination reduces fatigue, absorbs impact, and resists wear in the toughest industrial conditions. Certified high-traction by the National Floor Safety Institute (NFSI), these mats are also safe and reliable in environments with oil, grease, or chemicals.
The Hog Heaven Modular Tile system includes center, side, and corner tiles, allowing you to build flooring solutions that match your layout exactly — while sloped safety edges help reduce trip hazards.
Features and Specifications
features
- Modular Design – Link tiles together to create nearly any size or shape you need
- Superior Comfort – Anti-fatigue cushion reduces strain on legs, knees, and lower back
- High-Traction Safety – Certified by the NFSI; beveled edges won’t crack or curl
- Industrial Strength – Resistant to grease, oil, and chemicals; safe for welding areas
- Electrically Conductive – ESD-safe surface for static-sensitive environments
- Easy to Cut & Configure – Custom inside corners can be cut using a straight edge and linoleum knife
Specifications
Available Tile Sizes:
- 18" Series:
Center Tile: 18" x 18"
Side Tile: 18" x 21.75"
Corner Tile: 21.75" x 21.75"
- 36" Series:
Center Tile: 36" x 36"
Side Tile: 36" x 39.75"
Corner Tile: 39.75" x 39.75"
Please note: Sizes are approximate and may vary by 3–5% due to rubber’s natural expansion and contraction.
Construction Details:
- Surface Material: Durable nitrile rubber
- Cushion Material: Closed-cell nitrile/PVC-blended foam
- Foam Density: 7.0 – 9.0 lbs/ft³
- Overall Thickness: 3/4 inch (0.75")
Performance & Testing:
- Certified high-traction by the National Floor Safety Institute (NFSI)
- ESD Rating: Electrically conductive
- Passes BS 4790 and CPSC FF 1-70 flammability standards
- Compression Deflection:
42.3% at 20 psi
56.8% at 40 psi
- ASTM C1028-96 Coefficient of Friction:
Dry: 0.74
Wet: 0.77
Cleaning Instructions
- Scrub with a deck brush using neutral pH detergent (as needed)
- Rinse with a hose or pressure washer
- Hang or lay flat to dry completely before reuse
Ideal Aplications
- Manufacturing plants
- Machine shops
- Assembly lines
- Distribution centers
- Industrial workstations with irregular layouts
- Areas where grease, oil, or chemicals are present
Instalation

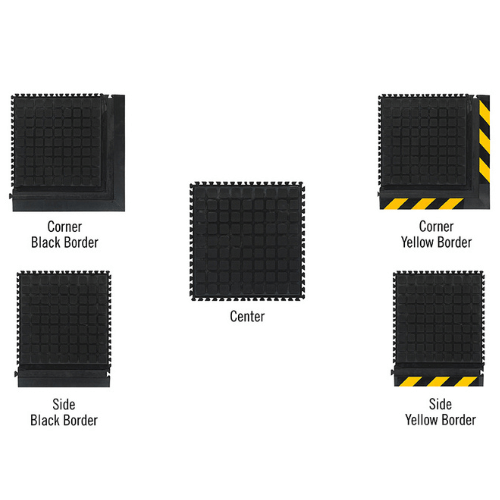

- Center Tiles: No borders – used for middle sections
- Side Tiles: One bordered edge – used along straight sides
- Corner Tiles: Two bordered edges – used for outside corners
How to Cut Inside Corners:
Assemble the tiles, overlapping the two that will meet at the inside corner
Lay a metal straight edge diagonally at a 45° angle across the overlap
Lift the top edge slightly to preview the cut and ensure the desired fit
With cut-resistant gloves, use a linoleum knife (not a utility knife) to make a clean cut through both tiles
Remove excess pieces and place the tiles together. For a more permanent hold, apply a few drops of super glue to the edge
